Kyocera ECOSYS M8124cidn
ECOSYS
ECOSYS stands for ECOlogy, ECOnomy and SYStem printing. With their long-life components, ECOSYS devices are designed to maximise durability and minimise the total cost of ownership with regard to maintenance, administration and consumables. The cartridge-free system means that only the toner has to be replaced regularly. The modular design
concept allows you to add workflowenhancing functions as required. Integrated system software provides long-term crossnetwork compatibility. Kyocera ECOSYS long-life components cost you and the environment less.
Description

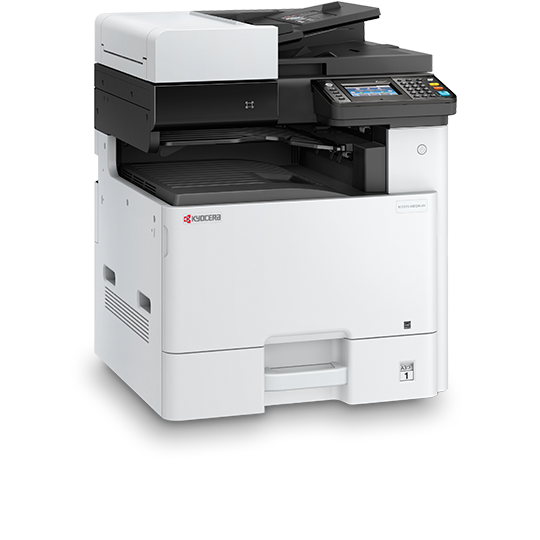

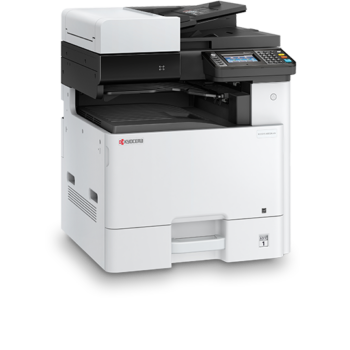

Kyocera ECOSYS M8124cidn
This compact Kyocera ECOSYS M8124cidn , A4/A3 format colour multifunctional with enlargement and reduce capability, specifically designed to meet the requirements of small offices and workgroups, will satisfy even the most demanding environment. Engineered with KYOCERA ’s renowned long life components, this ECOSYS device ensures unprecedented reliability and exceptionally low printing costs with significantly less environmental impact.
- Minimum installation and operation requirements.
- Simple and wizard operations.
- Long-life components provide exceptional reliability.
- HyPAS solution platform enables powerful customisations.
- Option of IT support from EBM Managed Services.
Looking to download the latest drivers and software for the Kyocera products? Click here to find them.
Specification
GENERAL
Technology: KYOCERA ECOSYS, Laser, Colour, HyPAS™
solution platform
Operation panel: 109.2 mm (4.3 inch), full-colour touch
panel display, speaker for job notification
Type: Desktop
Engine speed: Up to 24/12 pages A4/A3 per minute in
colour and black and white. Duplex print speed: 22 page per
minute, A4 Duplex copy speed: 22 page per minute, A4
Resolution: 1200 x 1200 dpi (print), 600 x 600 dpi
(scan/copy)
Warm-up time: Approx. 30 seconds or less
Time to first print: Approx. 7.5 seconds or less in black and
white, 10.2 seconds or less in colour
Time to first copy: Approx. 8.5 seconds or less in black
and white (DP), Approx. 11.0 seconds or less in colour (DP)
, Approx. 7.6 seconds or less in black and white (platen
cover), Approx. 9.8 seconds or less in colour (platen cover)
CPU: ARM Cortex-A9 Dual core 1,2 GHz
Memory: Standard 1.5 GB, max. 3 GB
Standard interface: USB 2.0 (Hi-Speed), 2 x USB
Host Interface, Gigabit Ethernet (10BaseT/100BaseTX
/1000BaseT), optional Wi-Fi (IEEE 802.11b/g/n), 2 eKUIO
slots, for optional internal print server or SSD hard disc and
for optional fax system, Slot for optional SD Card, NFC tag
Integrated accounting: 100 department codes
Dimensions (W x D x H): 590 x 590 x 753 mm (with
standard Document Processor)
Weight: Approx. 76 kg (with standard Document Processor)
Power source: AC 220 ~ 240 V, 50/60 Hz
Power consumption
Printing: 550 W
Copying: 550 W
Low power mode: 40W
Ready-mode: 70 W
Sleep-mode: 0.5 W
Noise (sound pressure level: ISO 7779/ISO 9296)
Copying/Printing in black and white: 52 dB (A)
Copying/Printing in colour: 53 dB (A)
Stand-by: 34 dB (A)
Safety standards: TÜV/GS, CE
This unit is manufactured according to ISO 9001 quality
standard and ISO 14001 environmental standard
PAPER HANDLING
All paper capacities quoted are based on paper thickness
of max. 0.11 mm. Please use paper recommended by
KYOCERA under normal environmental conditions.
Input capacity:
100-sheet multi-purpose tray, 60–256 g/m2, A3, A4, A5, A6,
B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x
432 mm), 500-sheet Standard universal paper cassette,
60–256 g/m2, A3, A4, A5, B5, Ledger, Letter, Legal, Folio,
Max. input capacity with options: 1,600 sheets
Duplex unit: Duplex as standard supports 60–220 g/m2
Standard reversing document processor: 50-sheets, A3, A4,
A5, B5, Letter, Legal, Custom (140 x 182 to 297 x 432 mm)
Simplex scan 45–160 g/m2, Duplex scan 50–120 g/m2
Output capacity: Max. 280 sheets; 250 sheets face-down
(main tray) plus 30 sheets (standard job separator tray)
PRINT FUNCTIONS
Controller language: PRE SCRI BE II e
Emulations: PCL6 (5c/XL), KPDL3 (PostScript 3 compatible),
PDF Direct Print, XPS Direct Print and Open XPS
Operating systems: All current Windows operating systems,
MAC OS X Version 10.5 or higher, Unix, Linux as well as other
operating systems on request
Fonts/barcodes: 101 outline fonts (PCL 6, KPDL 3, Windows
Vista), 1 Bitmap font, 45 types of one-dimensional barcodes,
1 type of two-dimensional barcode (PDF417)
Print features: Encrypted PDF Direct Print, IPP printing,
e-mail printing, WSD print, secure printing via SSL, IPsec,
SNMPv3, quick copy, proof and hold, private print, job
storage and job management functionality
Mobile printing support: KYOCERA Mobile Print app for
iOS and Android, AirPrint, Mopria, NFC, Direct Wi-Fi,
Google cloud print
COPY FUNCTIONS
Max. original size: A3/Ledger
Continuous copying: 1–999
Zoom range: 25–400% in 1% steps
Preset magnification ratios: 5 Reductions / 5 Enlargements
Exposure mode: Auto, manual: 7 steps
Image adjustments: Text + Photo, Photo, Text, Map,
Printed document
Features: Scan-once-copy-many, electronic sort, 2in1, 4in1,
job reserve, priority print, program, auto duplex copy, split
copy, continuous scan, auto cassette change (PF-470 or
PF-471 is required), copy density control, Prevent Bleed-
Through, ID card copy, Skip blank page
SCAN FUNCTIONS
Functionality: Scan-to-Email, Scan-to-FTP, Scan-to-SMB,
Scan to USB Host, Network TWAIN, WIA , WSD scan
Scan speed: 50 ipm (300 dpi, A4, black and white), 50 ipm
(300 dpi, A4 colour)
Scan resolution: 600, 400, 300, 200 dpi, 256 greyscales
per colour
Max. scan size: A3, Ledger
Original recognition: Text, photo, text + photo, light text,
optimised for OCR
File types: TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted PDF,
High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u
Compression method: MMR /JPEG
Features: Colour scan, integrated address book, Active
Directory support, encrypted data transfer, multi send
(e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
FAX FUNCTIONS (OPTIONAL)
Compatibility: ITU-T Super G3
Modem speed: Max. 33.6 kbps
Transmission speed: Max. 33.6 kbps
Scanning speed: 2.0 seconds or less
Address book: 200 entries
Scanning density:
Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi)
Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi)
Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi)
Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi)
Halftone: 256 grey scales
Maximum original size: A3, Ledger
Compression method: JBIG, MMR, MR, MH
Memory reception: 700 sheets or more
Features: Network fax, duplex transmission and reception,
encrypted transmission and reception,
polling transmission and reception, broadcast
CONSUMABLES
Average continuous toner yield in accordance with
ISO/IEC 19798
TK-8115K Toner Kit: Microfine toner black for 12,000 pages A4
TK-8115C, TK-8115M, TK-8115Y:
Microfine toner cyan, magenta, yellow for 6,000 pages A4
Capacity of starter toner is black 3,000 pages, cyan,
magenta, yellow 1,500 pages A4
OPTIONS
Fax System 13
Paper handling
PF-470 Paper feeder: Max. 500 sheets; 60-163 g/m2; A3,
A4, A5, B5, Letter, Legal, Custom (98 x 148 to 297 x 432 mm)
PF-471 Paper feeder: Max. 1,000 sheets; 60-163 g/m2; A3,
A4, A5, B5, Letter, Legal, Custom (98 x 148 to 297 x 432 mm)
Security: Data security kit (E):
Memory upgrade: DDR3 1GB/2GB
HD-6: SSD 32 GB for easy document management
HD-7: SSD 128 GB for easy document management
SD card: for printing forms, fonts, logos, macro storage,
and for HyPAS™ applications
USB Flash Memory: Supports direct printing and scanning
of PDF, XPS, TI FF, JPEG files via USB Host interface
UG-33: ThinPrint support
USB IC Card Reader + Card Authentication Kit (B): Support
for various authentication keys available. The card holder
is standard
Optional interface
IB-36: Wireless LAN (802.11b/g/n) with Wi-Fi Direct
IB-50: Gigabit-Ethernet board 10 BaseT/100 BaseTX/
1,000 BaseT
IB-51: Wireless LAN Interface (802.11b/g/n)
CB-470 Cabinet: Wooden desk with storage capacity,
including castors (wheels)
CB-472 Cabinet: Metal desk with storage capacity,
including castors (wheels)
