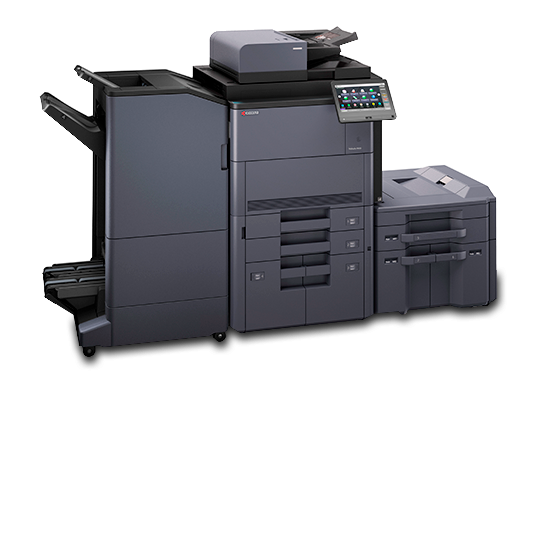

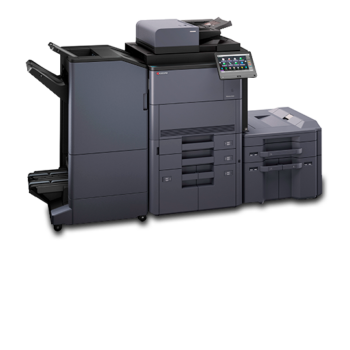

Kyocera TASKalfa 9003i

Stability to help you grow new markets

Designed to operate in demanding high-end work environments and keep up with your ever-changing way of working. These user friendly, secure and productive B/W MFP series – TASKalfa 7003i, 8003i and 9003i – will astonish you. Thanks to its newly designed 10.1” touch panel, accessing all features and getting exactly the results you need, is very intuitive and simple. To keep your data safe these models are equipped with various security features. In addition, the maximum input paper capacity of 7,650 sheets and output paper capacity of 4,300 sheets, is well suited to handle your largest and most complex print jobs.

  Download Brochure PDF



Description

Kyocera TASKalfa 9003i

The Kyocera TASKalfa 9003i high-performance Multi-Functional Product is one of the best on the market as it delivers high quality black and white print results at as much as 90 prints per minute, improving office productivity in many ways.

  • Comprehensive security functions like an IC card reader
  • Outstanding image quality due to advanced imaging technology.
  • Professional finishing options like booklets and tri-folding.
  • Efficient and reliable long-life components.
  • Standard network, mobile printing and colour scanning.
  • Option of  IT support from EBM Managed Services.

Looking to download the latest drivers and software for the Kyocera products? Click here to find them.



Specification

GENERAL
KYOCERA TASKalfa Laser Black & White Multifunctional,
HyPAS™ solution platform
Operation panel: 256.5 mm (10.1 inch) full-colour touch panel
display, speaker for job notification, 15°–90° swivel mounted
Engine speed: Up to 90 pages A4 per minute, up to 45 pages
A3 per minute, Duplex print speed: 90 pages per minute, A4
Resolution: 1,200 × 1,200 dpi (print), 600 × 600 dpi (scan/copy)
Warm-up time: Approx. 30 seconds or less from power on
Time to first print: Approx. 4.0 sec. or less
Time to first copy: Approx. 3.6 sec. or less (DP)
CPU: NXP QorIQ T1024 (Dual Core) 1.4 GHz
Memory: Standard 4.5 GB, Max. 8 GB SSD + 320 GB HDD
Standard interfaces: USB 2.0 (Hi-Speed), 4 × USB Host Interface,
Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT, IPv6, IPv4,
IPSec, 802.3az support), NFC tag, 2 eKUIO slots for optional
internal print server or for optional fax system(s), slot for optional
SD Card
Integrated accounting: 1,000 department codes
Dimensions (W × D × H): 750 mm × 822 mm × 1,234 mm
Weight: Main unit approx. 150 kg
Power source: AC 220–240 V, 50/60 Hz
Power consumption: Print mode: 1340 W, Copy mode: 1340 W,
Low power mode: 100 W, Ready mode: 110 W, Sleep mode: 0.7 W
Noise (sound pressure level ISO 7779 measurement distance
of 1 meter):
Copying/Printing: 55 dB(A) L pA, Stand by mode: 32,6 dB(A) L pA
Safety standards: TÜV/GS, CE. This unit is manufactured according
to ISO 9001 quality standard and ISO 14001 environmental standard.
PAPER HANDLING
All paper capacities quoted are based on paper thickness of max.
0.11 mm. Please use paper recommended by Kyocera under normal
environmental conditions.
Input capacity: Multi-purpose tray: 150 sheets, 60–300 g/m2
(Banner 136–165 g/m2), A3+, A3, A4, A5, A6, B5, Ledger, Letter,
Legal, Folio, Custom (98 × 148 to 297 × 432 mm), Banner max. 305 ×
1,220 mm;
Standard universal paper cassette: 2 × 500 sheets, 60–256 g/m2, A3
+, A3, A4, A5, B5, Ledger, Letter, Legal, Folio;
High-capacity paper deck: 2 × 1,500 sheets, 60–256 g/m2, A4, B5.
Max. input capacity with options: 7,650 sheets A4
Document processor: (one-path duplex scanning) 270 sheets, 35–
220 g/m2 (simplex), 50–220 g/m2 (duplex), A6R–Banner up to
2.200 mm
Duplex as standard unit: 60–256 g/m2, A5R–305 × 457 mm
Output capacity: Standard job separator tray 70 sheets; optional
copy tray (D): upper 100 sheets, lower 250 sheets; max. optional
output capacity 4,300 sheets
PRINT FUNCTIONS
Controller language: PRESCRIBE
Emulations: PCL6 (PCL-XL/PCL-5e), KPDL 3 (PostScript 3
compatible), PDF, XPS/OpenXPS, PPML
Operating systems: All current Windows operating systems, MAC
OS X Version 10.9 or higher, UNIX, LINUX, as well as other
operating systems on request.
Fonts/barcodes: 93 outline fonts (PCL), 136 fonts (KPDL 3), 4 fonts
(Calibri), 4 fonts (Cambria), 1 Bitmap font, 79 Outline fonts
Print features: Encrypted PDF Direct Print, IPP printing, e-mail
printing, WSD print, secure printing via SSL, IPsec, SNMPv3,
quick copy, proof and hold, private print, job storage and job
management functionality
Mobile printing support: AirPrint, Mopria, Google Cloud Print
compliant, NFC, Direct Wi-Fi (optional), MyPanel and KYOCERA
Mobile Print app for iOS and Android
COPY FUNCTIONS
Max. original size: A3/Ledger
Continuous copying: 1 – 9,999
Zoom range: 25 – 400 % in 1 % steps
Preset magnification ratios: 5 Reductions/5 Enlargements
Exposure mode: Auto, manual: 16 steps
Image adjustments: Text + Photo, Photo, Text, Map, Printed
document
Features: Scan-once-copy-many, electronic sort, 2in1, 4in1, image
repeat, page numbering, cover mode. booklet copy, interrupt
copy, form overlay, margin shift, auto cassette change, Skip blank
page, ID card copy
SCAN FUNCTIONS
Functionality: Scan-to-email, Scan-to-FTP, Scan-to-SMB 3.0,
Scan-to-USB Host, Scan-to-box, Network TWAIN, WSD scan
(WIA Driver Network)
Scan speed: (A4, 300 dpi, Dual Scan) 220 images per minute;
(A4, 300 dpi, Simplex Scan) 120 images per minute
Scan resolution: 600 × 600 dpi, 400 × 400 dpi, 300 × 300 dpi,
200 × 400 dpi, 200 × 200 dpi, 200 × 100 dpi; 256 greyscales per
colour
Max. scan size: A3, Ledger, Banner up to 2,200 mm
Original recognition: Text, photo, text + photo, light text/
fine line, optimised for OCR
File types: TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted PDF,
High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, OOXML
(OCR)
Features: Colour scan, Auto Colour Select, integrated address
book, Active Directory support, encrypted data transfer, multi
send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip,
Specified colour removal
FAX FUNCTIONS (OPTIONAL)
Compatibility: ITU-T Super G3
Modem speed: Max. 33.6 kbps
Transmission time: Max. 3 seconds (JBIG)
Scanning speed: 2.0 seconds/sheet or less
Address book: 2,000 entries
Fax resolution: Normal: 200 × 100 dpi, Fine: 200 × 200 dpi,
Superfine: 200 × 400 dpi, Ultrafine: 400 × 400 dpi, 600 × 600 dpi
Maximum original size: A3, Ledger, Banner up to 1,600 mm
Compression method: JBIG, MMR, MR, MH
CONSUMABLES
Average continuous toner yield in accordance with
6 % coverage A4.
TK-6725 Toner Kit: Microfine toner black for 70,000 pages A4
WT-861 Waste Toner Bottle: 600,000 sheets (in accordance with
6 % coverage)
Staples: SH-12 for DF-7110, SH-10 for BF-730/BF-9100,
SH-14 for DF-7130
OPTIONS
Fax System 12
Internet Fax Kit (A) (requires Fax System 12)
DT-730(B) Document Table
PF-730(B) Paper feeder: 2 × 500 sheets, 60–256 g/m2;
A5R–305 × 457 mm, folio
PF-740(B) Paper feeder: 2 × 1,500 sheets, A4, 60–256 g/m2;
A4, B5, Letter
PF-7120 Paper feeder: 3,000 sheets, 60–256 g/m2; A4, B5
PF-7130 Multiside Tray: 1 × 500 sheets
DF-7110 Document finisher: Main tray: max. 4,000 sheets A4
(3,000 sheets with BF-730 attachment), max. 60–300 g/m2,
max. B5R–305 × 457 mm;
Sub-tray: 200 sheets A4, 60–300 g/m2, A6R–305 × 457 mm;
Stapling up to 65 sheets A4
DF-7130 Document finisher: Main tray: max. 4,000 sheets A4
(3,000 sheets with BF-9100 attachment), max. 52–300 g/m2,
max. B5R–305 × 457 mm; Sub-tray: 200 sheets A4; 52–300 g/m2,
A6R–305 × 457 mm, Stapling up to 100 sheets A4
PH-7C/PH-7D Punch unit: for DF-7110/DF-7130
MT-730(B) 7-Bin Mailbox sorter: for DF-7110
BF-730 for DF-7110 Booklet and tri-folding unit: Half folding:
60–256 g/m2; A3, B4, A4R; Booklet: max. 16 sheets (64 pages,
60–90 g/m2); Non-staple folding: max. 5 sheets (60–90 g/m2);
Tri-folding: 60–105 g/m2, A4R; Multi tri-folding: 5 sheets
(60–90 g/m2)
BF-9100 for DF-7130 Booklet and tri-folding unit: Half folding:
52–256 g/m2; A3, B4, A4R; Booklet: max. 20 sheets (80 pages,
60–90 g/m2); Non-staple folding: max. 5 sheets (60–90 g/m2);
Tri-folding: 5 sheets (60–90 g/m2)
Copy tray (D): upper tray 100 sheets, lower tray 250 sheets
USB IC Card Reader + Card Authentication Kit (B):
Supports various authentication card keys.
NK-7120: Numeric keypad
Keyboard Holder 10
UG-33: ThinPrint support
UG-34: Emulation (IBM Proprinter/EPSON LQ-850/Diablo 630)
Banner Guide (A): Banner paper feeding guide up to 10 sheets
Optional interface:
IB-35: Direct Wi-Fi Interface
IB-50: Gigabit Ethernet: 10BaseT/100BaseTX/1000BaseT (RJ45)
IB-51: Wireless Lan (802.11b/g/n)
